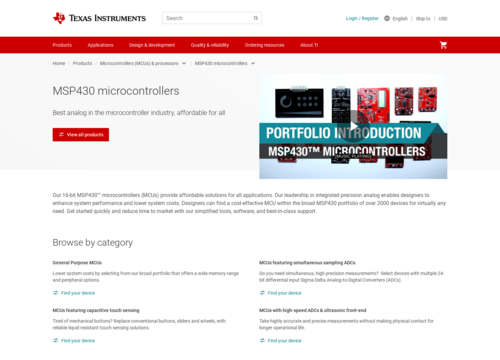

MSP430

The MSP430 is a family of microcontrollers developed by Texas Instruments. Renowned for its low power consumption, the MSP430 is designed for applications requiring a combination of low energy usage and moderate computational power. This balance makes it particularly suitable for battery-powered and portable devices.

Low Power Consumption

The MSP430 is notable for its ultralow power consumption. Several power-saving modes are available to achieve a balance between power use and operational capability. This feature extends the battery life of devices in which it is used, a crucial factor for portable and remote sensing applications.

RISC Architecture

The MSP430 is based on a reduced instruction set computing (RISC) architecture. This design philosophy focuses on a small, highly optimized set of instructions, which can lead to greater efficiency in many applications.

Mixed-Signal Capabilities

Many MSP430 models integrate both analog and digital components on a single chip. This capability allows it to process both digital and analog signals, making it ideal for applications such as sensor systems and signal processing.

Memory and Clock System

MSP430 microcontrollers typically use a variety of on-chip memory options, including flash memory and RAM. The flexible clock system of the MSP430 supports multiple frequency options that can be adjusted to balance power consumption and processing speed.

Peripheral Integration

These microcontrollers often include a range of integrated peripherals, such as timers, universal asynchronous receiver/transmitters (UARTs), and analog-to-digital converters (ADCs). This integration can reduce the need for additional external components, saving both cost and space.

Development Tools and Community Support

Texas Instruments supports MSP430 users with a range of development tools, including software such as Code Composer Studio and the IAR Embedded Workbench. Additionally, there is a strong community of developers and hobbists around MSP430, which contributes to a wealth of shared knowledge and resources.

Applications

The MSP430 is used in a variety of applications, especially where power efficiency is paramount. Common uses include smart meters, portable medical devices, industrial control systems, and low-power sensor networks.

Scalability and Versatility

The MSP430 family includes a wide range of devices with different memory sizes, peripheral combinations, and power consumption characteristics. This scalability allows engineers to select a microcontroller that closely matches the requirements of their specific application, whether it is a simple low-power device or a more complex system with multiple functions.

Programming and Software

Programming the MSP430 can be performed in C, C++, or assembly language, making it accessible to a broad range of developers. The availability of comprehensive libraries and code examples further aids in rapid development and prototyping. Texas Instruments also provide an integrated development environment (IDE), which includes tools for debugging and programming.

Digital signal processing (DSP) capabilities

Some MSP430 models have built-in DSP capabilities, which make them suitable for applications that require signal processing, such as audio processing and advanced sensor data analysis.

Energy Harvesting Applications

Due to its ultralow power consumption, MSP430 is often used in energy harvesting applications where the power supply is limited or comes from sources such as solar panels or thermal energy.

Wireless Connectivity

Certain MSP430 models are equipped with integrated wireless communication capabilities, such as Bluetooth or ZigBee, which are essential for IoT (Internet of Things) applications.

Security Features

Security is increasingly important in microcontroller applications, especially in the IoT and connected devices. Some MSP430 models include hardware encryption and decryption modules for secure data transfer and storage.

Educational Use

Due to its low cost and the availability of easy-to-use development boards, the MSP430 is also popular in educational settings, providing students and hobbies with a practical and affordable platform for learning about embedded systems.

Customizable and Expandable

The MSP430 is designed to be easily integrated with other hardware components, allowing custom setups with sensors, actuators, and communication modules. This flexibility is vital for bespoke and niche applications.

The MSP430 microcontroller series from Texas Instruments stands out for its low power consumption, diverse range of models, integrated peripherals, and versatility across a wide spectrum of applications. Its user-friendly development environment and robust community support further enhance its appeal to both professional developers and hobbyists alike. For industrial, consumer, medical, or educational applications, the MSP430 offers a compelling blend of power efficiency, functionality, and scalability.
